THE OLIVE

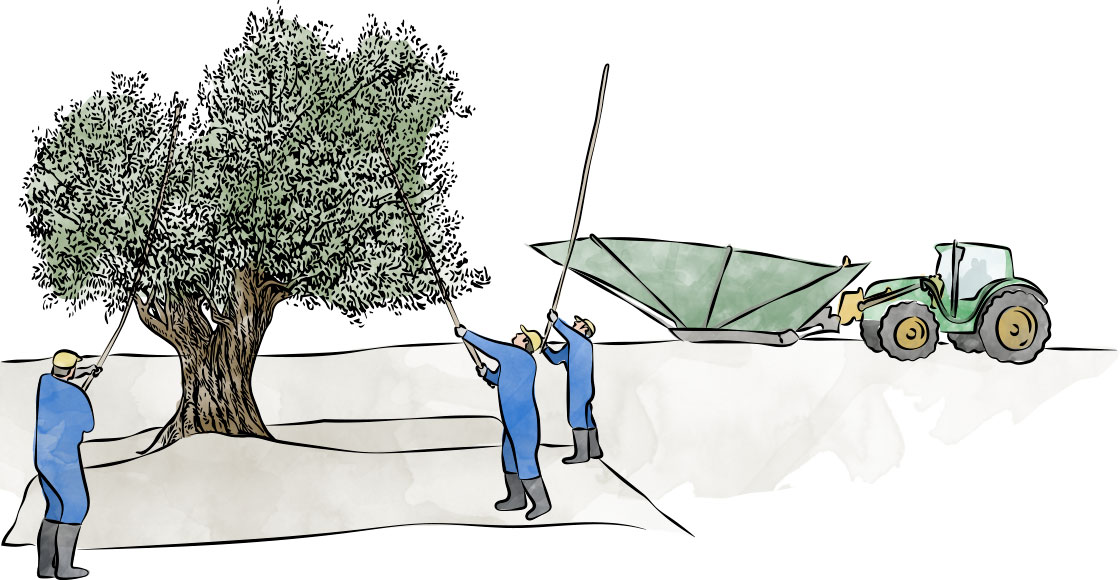

HARVESTING

The tree is cared for throughout the year.

The olive trees are shaken to dislodge the fruits, while preventing the olive from touching the ground at all times.

Olive oil manufacturing app
Olive oil manufacturing app

It is also done by mechanization, using machines that vibrate the branches or the entire tree to dislodge the fruit.
Watch video

TRANSPORT

The olives are transported to the oil mill, which is the processing factory where the oil is produced.
Watch video

Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app

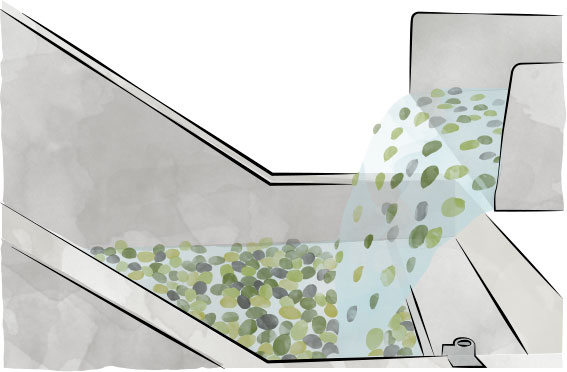

CLEANING AND WASHING

Upon reaching the oil mill, the olives are cleaned to remove any residue.
Watch video

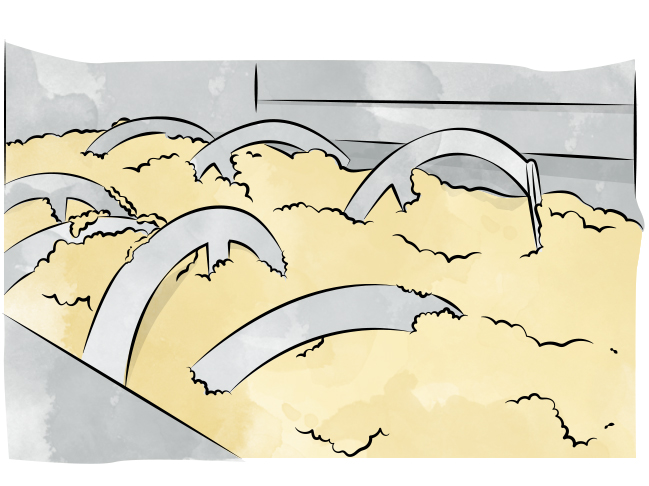

GRINDING AND BEATING

To obtain the oil, the olive must first be ground to make a paste.

The paste is sent to a mixing blender that homogenizes it to facilitate the pooling of the oil.

When the churning temperature stays below 27 degrees Celsiu, it is called “cold-press” production and can thus be indicated on the labels of extra-virgin olive oils.

Watch video

Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app

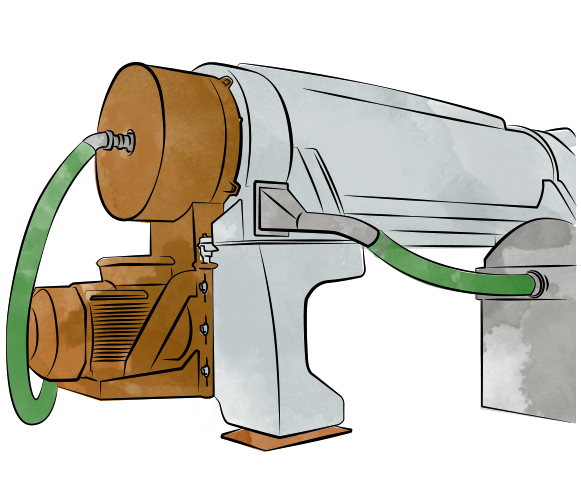

EXTRACTION

The most widely used system in the oil mills for oil extraction is known as the continuous system. A machine called a decanter separates the oil through centrifugation from the vegetable water and solid waste present in the pulp (flesh and bone).

The resulting oil is sent to a vertical centrifuge where the suspended particles are removed..
Watch video

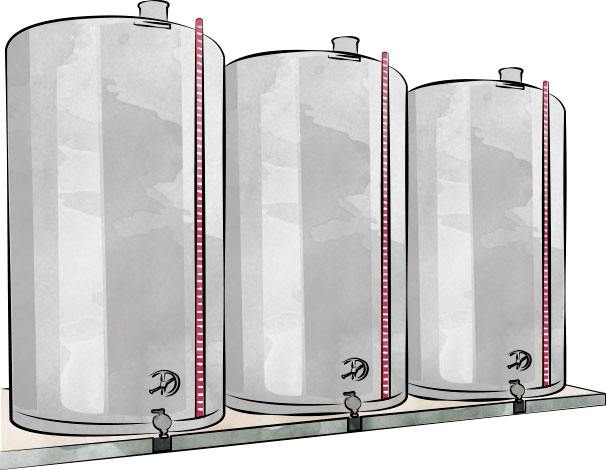

STORAGE

The virgin olive oil is stored in tanks until it is bottled. It must be kept at a constant temperature between 15 and 18°C, and protected from light to keep all its properties intact.
Watch video

Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app

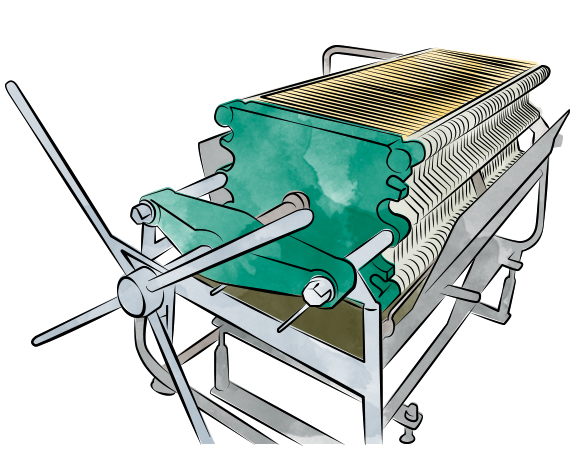

FILTRATION

The oil is usually filtered before bottling to remove moisture and organic matter in suspension.

However, virgin olive oil can be bottled without being filtered. In this case, it is called “crude oil”.

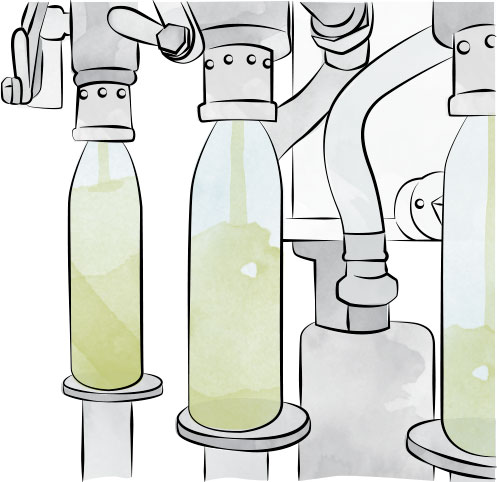

BOTTLING

The oil can be bottled in different types of recipients (glass, plastics, metal, etc).

It is very important to protect the olive oil from heat, direct sunlight, and air to protect all its properties.

Watch video

Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app
Olive oil manufacturing app

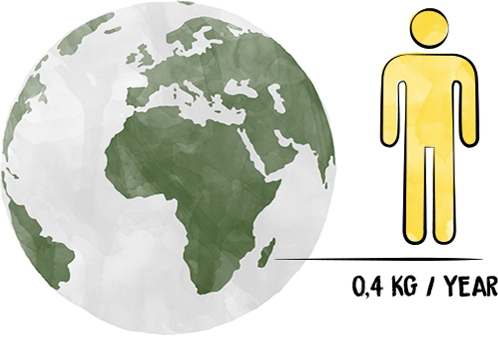

AVERAGE CONSUMPTION

Average global consumption of olive oil is 0.4 kg per person per year.

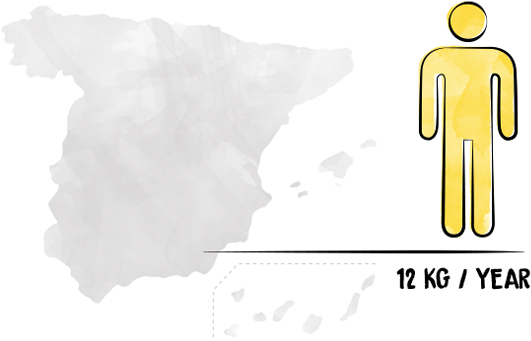

In Spain, the consumption of olive oil reaches 12 kg per person per year.

This entire rigorous process is followed so that the oil reaches the consumer in top condition.
Now you just have to enjoy it!

Olive oil manufacturing app
Olive oil manufacturing app


THE 10 KEY FEATURES OF OLIVE OIL

Read more

Olive oil manufacturing app
Olive oil manufacturing app


THE LEADING PRODUCER

Read more

Olive oil manufacturing app
Olive oil manufacturing app

Olive Oil Production Process

Dejar un comentario / General / Por oletrips

Lots of you have asked many times how is the olive oil production process. Well… even though it is much better to live the experience than reading about it, today we will try to explain you the process of olive oil making. You can always discover it by yourself on our Olive Oil Tour, though

.

The olive oil production process has not changed too much over the years, only the tools have changed to save efforts and time.

olive oil tour andalusia spain
Olive oil manufacturing app

Well, now imagine that your family have owned an olive tree plantation (olivar) for centuries just like Cipriano’s family. What would be the process you would follow?

Harvest

Olives must be harvest from the trees at the optimal ripening moment. That is to say, when most of the olives are ripe.

There are different methods of harvesting olives, where most common is the hand harvesting. It consists on picking the olives by hand and also with rakes, and leave them fall into a net laid around the tree or haging from it.

Other method is to pick the olives by shake. With this one, the branches of the olive tree are shaken either manually or with a machine, which makes the olives fall into a net laid on the floor.

One of the most common process and the one we explain in detail on our Olive Oil Tour is the one called ‘vareo‘. On this one, the branches are hit with a stick called ‘rod’. This make the olives drop on a fabric that covers the area around the olive tree.

olive oil production process

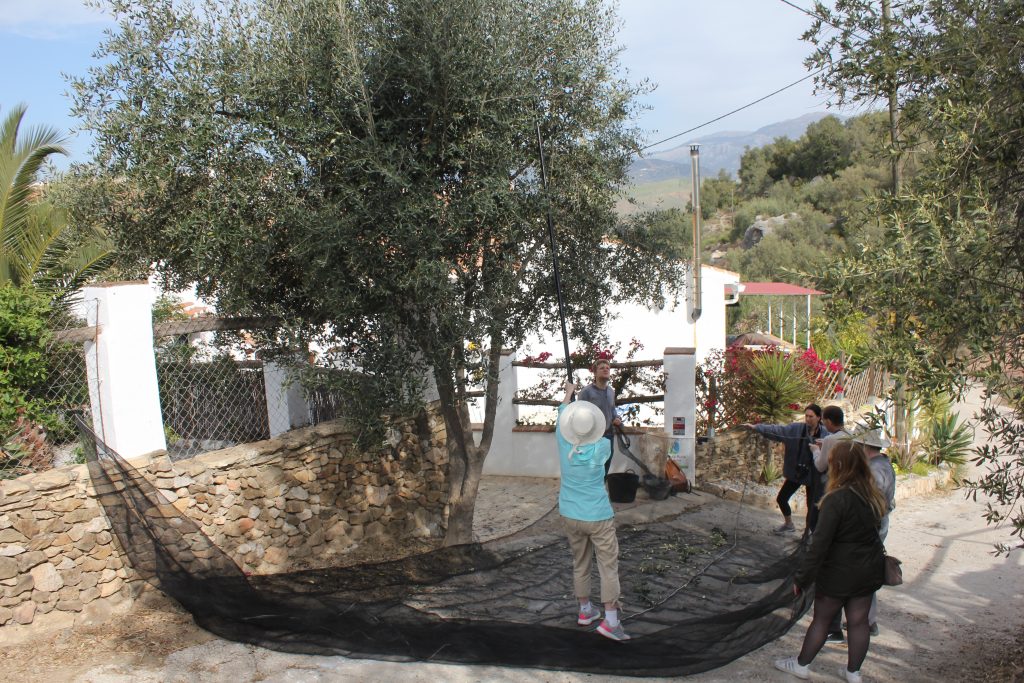

Vareo demonstration
olive oil production process
Example of a net used to pick the olives

Some farmers prefer to leave the olives until they are all ripe. This means that the quality of the olive oil won’t be exceptional but can be profitable for them as they will obtain more kilos of olives. For this reason, sometimes farmers also pick the olives directly from the floor.

Transportation and receiving

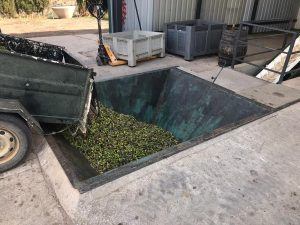

Receiving the olives at the mill

Once all the olives are harvest, we will take them to an olive mill to be processed. This must be done in a short period of time, maximal 24 hours after the harvest. To avoid beating or damage of the fruit, transportation is done in individual baskets or boxes.

Cleaning and washing process

At the olive mill, the olives will be on the first place cleaned from branches, stones or any other rests on a conveyor belt. They will be washed with potable water to remove them from traces of dirt and dust and later clasified into groups, according their quality or even their variety.

Milling

The olives must be milled the same day of the harvest (within the next 24 hours) to avoid the fermentation and oxidation of the fruit.

olive oil production process

This process consists of a hammer or stone grinder that breaks up the vegetable tissue and releases oil to obtain a homogeneous paste.

Churning and extraction

This paste is then cold pressed to remove the oil and vegetable water from the olives, or it can also be beaten at room temperature and then centrifuged to obtain oil, vegetable water and pomace, as a result of the difference in density.
The water is separated from the oil either by natural decantation or by vertical centrifuges, to avoid altering the quality of the oil.

Obtainment and storage

Then the olive oil, can be stored in stainless steel tanks, in the dark and at a soft and constant temperature above 15ºC. This is made to avoid rancidity or clouding, until its later bottling or packaging to be sold to the consumer.

As for the semi-finished product, or low quality oil should be treated as it has suffered some alteration in quality and are not suitable for direct consumption should be refined.

olive_oil_oletrips
Delish virgin extra olive oil

Once you know a bit more about the olive oil process, for sure you will love to make a visit to an olive oil mill and taste some delicious olive oil, don’t you? Once you get into the olive oil and know all its properties, you will not be the same, we promise.

Here you can book our Olive Oil Tour, where you will have the chance to visit a small and exclusive olive oil mill that produces an extraordinary olive oil (and you will have the chance to buy their products there!) and also if you would like to buy some fresh delicious virgin extra olive oil online, we can recommend you Los Romanes olive oil, a local brand we love!

Become an expert of olive oil and above all, improve your quality of life!

How olive oil is processed

by Tara Mchugh, Institute of Food Technologists

How olive oil is processed

The olive tree is native to the Mediterranean basin. Archeological evidence shows that olive oil was produced as early as 4000 BC. Besides food, olive oil was used historically for medicine, lamp fuel, soap, and skin care.

The majority of olive oil is produced in the European Union, with Spain being the largest producer of olive oil in the world, followed by Italy and Greece. In the United States, olive oil is produced in California, Arizona, Texas, Georgia, Florida, Oregon, and Hawaii.

Variety and maturation are two of the most important factors of olives that influence the quality and taste of the final olive oil. There are hundreds of varieties of olive trees. A wide range of olive varieties are used in the production of olive oil. These include Mission, Manzanillo, Sevillano, Arbequina, Koroneiki, Arbosana, Ascolano, Frantoio, Leccino, Pendolino, Maurino, and Coratina.

Olive oil production begins with harvesting the olives. Traditionally, olives were hand-picked. Currently, harvesting is performed by a variety of types of shakers that transmit vibrations to the tree branches, causing the olives to drop into nets that have previously been placed under the tree canopy. Increasing ripeness generally increases yield in terms of release of olives from the tree branches. However, over-mature olives do not possess the best sensory qualities for oil production. Therefore, harvesting time is frequently a compromise between harvesting efficiency and final oil quality.

After harvesting, the olives are washed to remove dirt, leaves, and twigs. After the twigs are filtered out with grids, the fruit is ready for processing into oil. Fewer than 24 hours from harvest to processing produces the highest-grade oils.

Traditional Olive Oil Processing

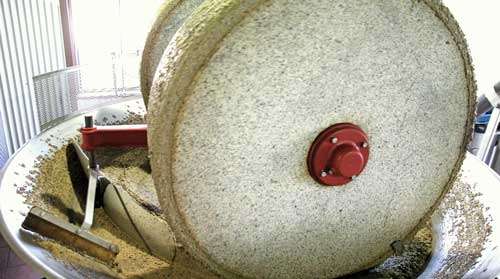

Traditional olive oil processing begins with crushing the olives into a paste. The purpose of the crushing is to facilitate the release of the oil from the vacuoles. Large granite stones such as the one shown in the photograph on this page were traditionally used to crush olives. In the early days, donkeys were used to pull the stone wheel around. This particular mill is motorized and also includes wiper blades, both of which are more recent additions to the traditional stone mill.

The next step in the process involves malaxing the paste (mixing the paste). The paste is mixed for 20–45 minutes to allow small oil droplets to combine into bigger ones. This process ensures the olives are well ground and allows the fruit enzymes to produce desirable aromas and flavors. Longer mixing times increase yield; however, they may also result in increased oxidation and decreased shelf life and quality.

How olive oil is processed

Following milling and malaxing, the paste is spread on fiber disks, which are stacked on top of each other, then placed into a press. Traditionally, disks were made of hemp or coconut. In modern times, they are made of synthetic fibers, which can be more easily cleaned. The stacks of discs are then pressed in a hydraulic press. Pressure is applied to the disks, compacting the solid phase and percolating the liquid phases (oil and vegetation water). Pressures up to 4,000 kPa are used. Water can be used to run down the sides of the discs to increase the speed of percolation. The liquids are then separated by decantation or centrifugation.

Modern Olive Oil Processing

Modern olive mills are partially or fully automated and have replaced granite crushers with metal crushers. They consist of a stainless steel body and a stainless steel crusher that rotates at high speed. The olives are typically thrown against a hammer-shaped metal grating, thus the name hammermill. Alternatives include toothed disc, cylinder, and roller mills. Modern milling is very gentle in order to avoid overheating of the paste. Cold pressed (extra virgin) oils must not exceed 27˚C at any step in the processing of the oil.

Modern malaxers are horizontal troughs with spiral mixing blades. Typically, two or three cylindrical vats are used in tandem, mixing the paste at slow speeds (15–20 rpm) for anywhere between 20 minutes and 75 minutes. The vats are jacketed so that the paste can be heated or water added during this process to increase the yield, although that generally results in a lowering of oil quality. New malaxers have an atmosphere controlled by an inert gas (i.e., nitrogen or carbon dioxide) to reduce oxidation and produce higher-quality oils.

Following modern milling processes, the paste is pumped into an industrial decanter where the phases are separated using centrifugation. This step can involve a three-phase decanter or a two-phase decanter. Water can be added to facilitate the extraction process. The decanter is a large-capacity horizontal centrifuge rotating approximately 3,500 rpm. In three-phase decanting, inside the rotating conical drum is a coil that rotates more slowly than the drum. This pushes the solids out of one end of the system and the water and oil out the other end. Three-phase decanting results in loss of a portion of the oil polyphenolics due to the higher quantity of water used. It also produces larger quantities of vegetative water that then need to be processed and have negative environmental effects. Two-phase decanters were created to solve these problems. In this process, the olive paste is separated into two phases, oil and wet pomace. The decanter has two exits instead of three, and the water is expelled with the pomace, resulting in a wetter pomace. The two-phase decanter thus solves the phenol washing issue and uses less water, but increases the waste produced. Regardless of the process used for oil extraction, a final centrifugation process is needed to separate the oil from the vegetation water. Vertical centrifuges, operating at lower speeds of 6,000 rpm under controlled temperature conditions, are used for this purpose.

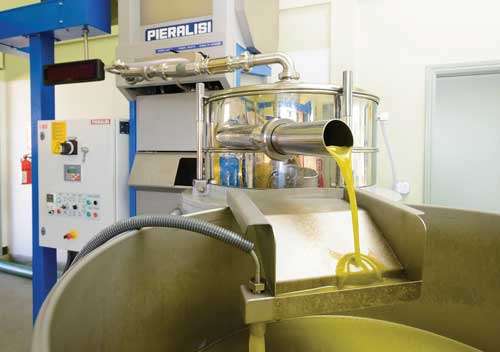

State-of-the art, continuous commercial olive mills can be purchased from companies like Gruppo Pieralisi. One of the company's units is shown in the photo on this page. It is a closed system of continuous milling that provides minimal oxygen contact using a two-phase extraction process. This mill processes 3 tons of olives an hour.

The Sinolea method is yet another method to extract olive oil. In this process, rows of metal discs are dipped into the paste, and the oil preferentially sticks to the metal and is removed by scrapers in a continuous process. Based on the varying surface tension between the oil and vegetation water, the oil adheres to the steel plates while the other two phases remain behind. The Sinolea method continuously introduces hundreds of plates into the paste and is not very efficient, leaving lots of oil in the paste. The final paste still requires decanting.

Following processing, the oil is stored in large stainless steel tanks with nitrogen blanketing to protect it from oxygen. Although not necessary, virgin olive oil can be filtered prior to bottling. Diatomaceous earth is frequently used as a filter aid. Colored glass bottles are ideal packaging for olive oil because the colored glass blocks the UV light and is also impermeable to oxygen. Bottling under nitrogen is a recommended practice.

Olive Oil Standards

The International Olive Council (IOC) sets standards that most olive oil–producing countries use; however, the United States does not legally recognize those standards. In 2014, the Olive Oil Commission of California approved olive oil standards that are stricter than the IOC standards. The term virgin universally means the oil was processed by the use of mechanical means only, with no chemical treatment. The new standards in California include more precise methods for testing adulteration and ban misleading marketing terms for refined oils, such as "light" and "pure." Furthermore, the benchmark for free fatty acidity in extra-virgin olive oil is set to 0.5%, below the international standard of 0.8%. In addition to extra-virgin olive oil, lower grades of olive oil include virgin olive oil, which has a free fatty acid content of below 1.5%. Lower grades of olive oil include refined olive oils and olive pomace oils.

Opportunities for Co-Products

Recent research has focused on better utilization of the co-products of olive oil processing. These co-products contain healthy polyphenolics and fibers that can be beneficial to human health. Thus, new uses for the vegetative water and their extracts are being explored as foods, supplements, and cosmetics. In addition, methods to stabilize the wet pomace in an efficient manner are being studied, as are value-added final product uses for the pomace itself in foods.
